Gravity Forms

Author: Nasir Ahmed 100 views

Gravity Forms is another popular contact form plugin for WordPress that has lots of exciting features. You can easily integrate it into many other popular platforms using the Advanced Form Integration plugin.

It requires a Pro license of the Advanced Form Integration plugin to use this feature.

Getting Started

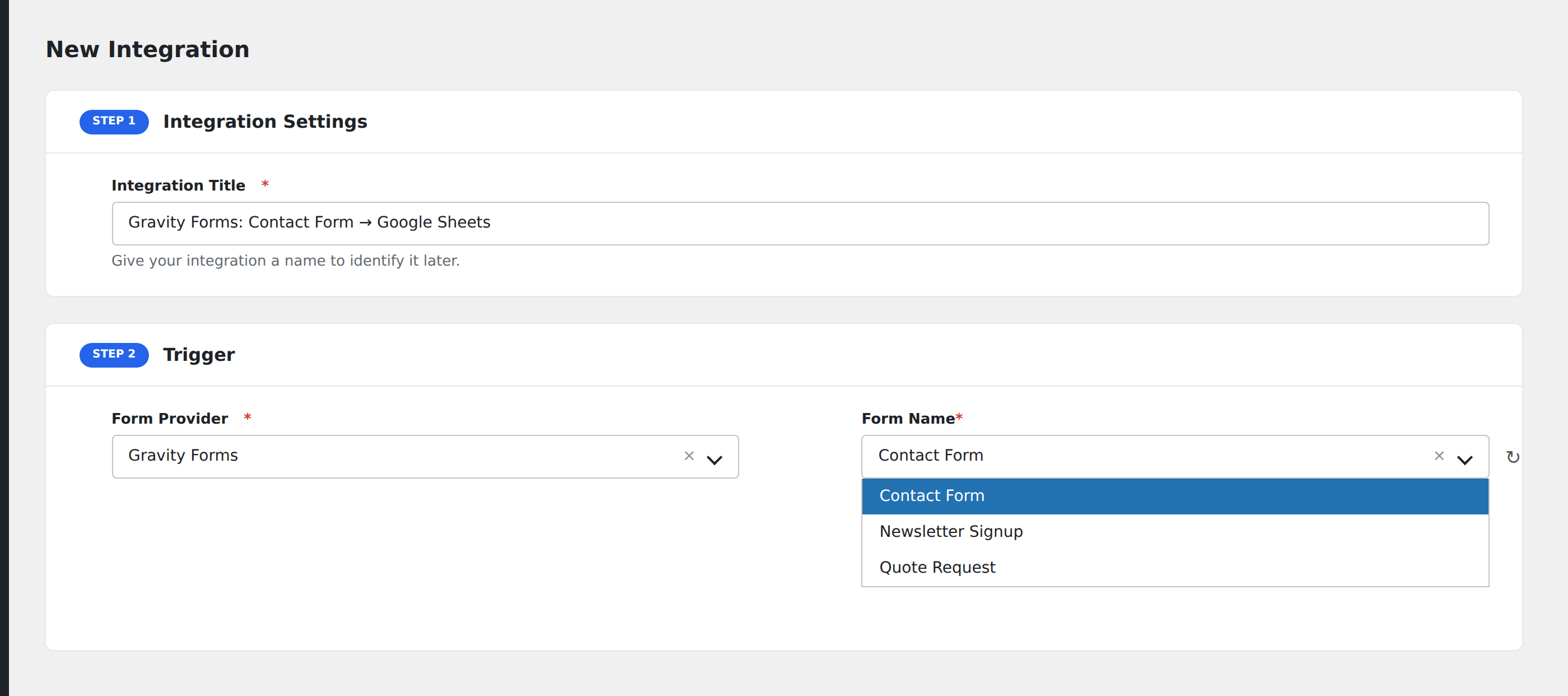

To start integrating Gravity Forms, go to the AFI Menu > Add New .

Title: A default title will be auto added but you can rename it to a meaningful one. That can help you to quickly recognize the correct one when you have several integrations.

Form Provider: Select Gravity from dropdown. Please remember that Gravity Forms plugin must be installed and activated otherwise you won’t find it in dropdown.

Form Name: A list of all forms created in Gravity Forms will be populated here. Select the one that you want to connect.

Supported Form Fields

Field Supported Output
Single Line Text
Yes
Same as input
Paragraph Text
Yes
Same as input
Dropdown
Yes
By default selected label otherwise value (if set)
Multi Select
Yes
By default comma-separated selected labels otherwise values (if set)
Number
Yes
Same as input
Checkboxes
Yes
By default comma-separated selected labels otherwise values (if set)
Yes
Yes
By default selected label otherwise value (if set)
Hidden
Yes
Value
Name
Yes
Prefix, first name, middle name, last name, suffix separately
Date
Yes
YYYY-MM-DD format
Time
Yes
As selected format
Phone
Yes
Same as input
Address
Yes
Address line 1, address line 2, city, state, zip, country separately
Website
Yes
Same as input
Email
Yes
Same as input
File Upload
Yes
Uploaded file link. Comma-separated if multiple
List
Yes
JSON object array with key-value pair
Consent
Yes
1 (if marked)
Post Fields
Yes
Value

Gravity Forms – supported fields

Platform: Now select the platform you want to connect to and finish the setup. Please check Receiver Platforms documentation to know more about that specific receiver platform.
